KEY FEATURES
- Remote powering option
- Waterproof, robust housing with BNC output
- Status LED
- 1 piece
- Carrier frequency ranges: 470 - 952 MHz
- Amplification: 17 dB
- RF inputs: 1 x BNC, 50 Ohm
- RF Outputs: 1 x BNC, 50 Ohm
- Operating voltage: 8 V DC, via connecting cable from PS 4000 or ASU 4000
- Measurements: 110 x 35 mm
- Weight: 100g
DESCRIPTION

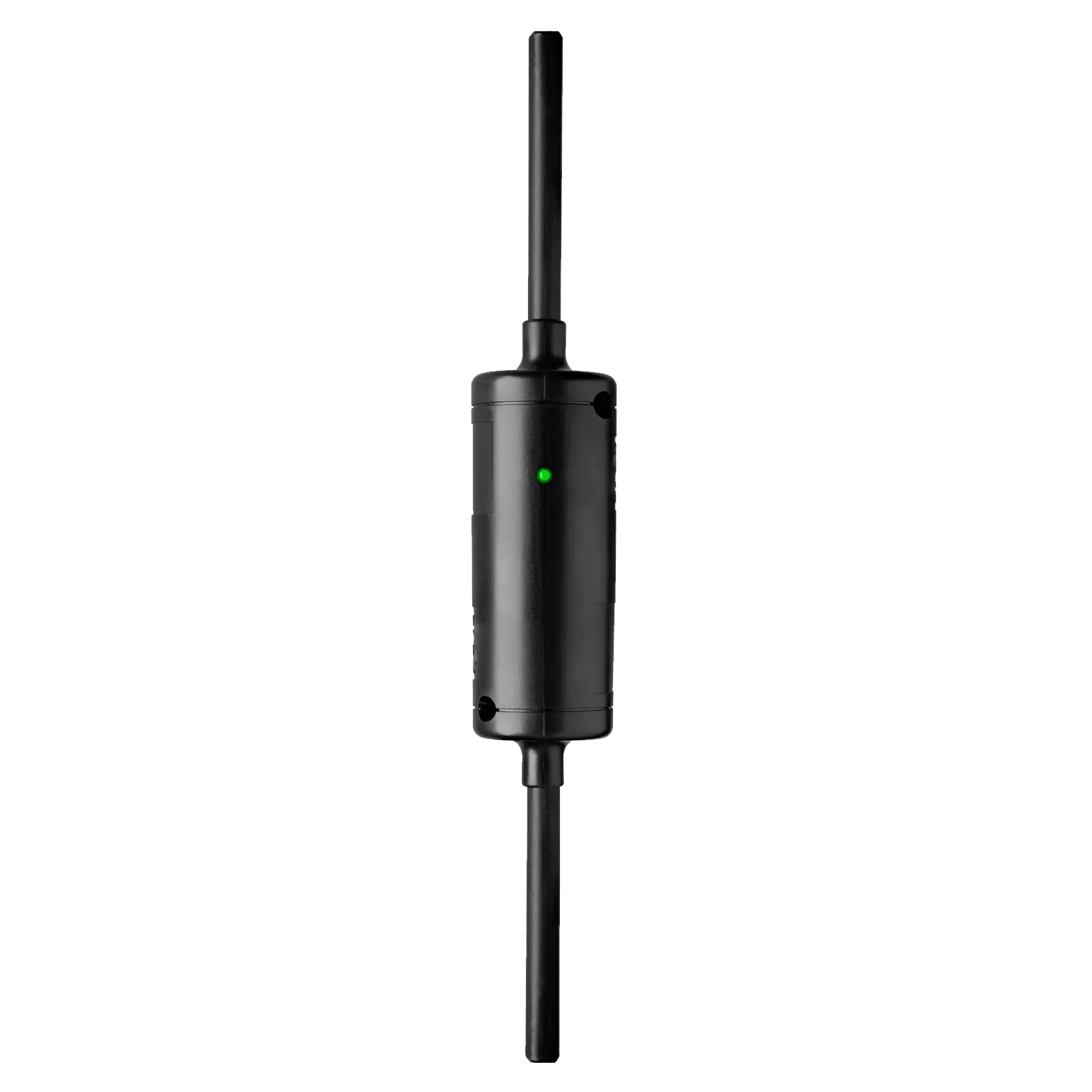

The RA4000 B/EW is an active omnidirectional wide-band UHF receiving antenna for use with wireless microphone systems. It operates in a frequency range from 470MHz to 952MHz, providing a covering angle of 360° and a total gain of 18dB. The RA4000 B/EW has a built-in amplifier to compensate long cable runs. With dedicated antenna components, it works for cable lengths up to 300m. The RA4000 B/EW is remotely powered through the antenna cable.
The antenna has waterproof construction and can be used for indoor and outdoor applications. Using the included universal stand adapter, the RA4000 B/EW can be mounted on floor stands with 3/8" or 5/8" screws.
SPECIFICATIONS
| Switching bandwidth (from/to) | 470 to 952 MHz |
| Antenna Gain | 17 dBi |
| Covering Angle | 360 Grad |
| Output Current | 0; 0; 0 |
| RF Attenuation | 0; 0; 0 |
| Body | Plastic |
| Finish | Black |
| Powering Interface Type | BNC |
| Voltage | 8 to 8 V |
