CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/5000 G-Series/4000 G-Series/3000 Series/3000 G-Series Desktop Processors (Refer to )

Chipset

AMD A520

Memory

2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/.../2133 MHz Un-buffered Memory (Dual Channel Memory Architecture, ECC Memory support varies by CPU, Refer to )

Graphics

1 x D-Sub, 1 x HDMI 2.1 (4K@60HZ)

Expansion Slots

1 x PCIe 3.0 x16 (x16 mode), 2 x PCIe 3.0 x1

Storage

1 x M.2 Socket 3 (PCIE 3.0 x4 and SATA modes), 4 x SATA 6Gb/s (Support RAID 0, 1, 10)

LAN

Realtek RTL8111H 1Gb Ethernet, ASUS LANGuard

Audio

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC (Audio Shielding, Dedicated audio PCB layers, Chassis with HD audio module supports 8-channel audio output)

USB Ports

Rear: 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A; Front: 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A

Software Features

Armoury Crate, AI Suite 3, TurboV EVO, EPU, Digi VRM, Fan Xpert, EZ update, ASUS CPU-Z, AI Charger, DAEMON Tools, Norton Anti-virus (Free Trial), WinRAR

UEFI BIOS

ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode)

Special Features

ASUS 5X PROTECTION III (DIGI VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O), ASUS Q-Design (Q-DIMM, Q-Slot), ASUS Thermal Solution (Aluminum heatsink design)

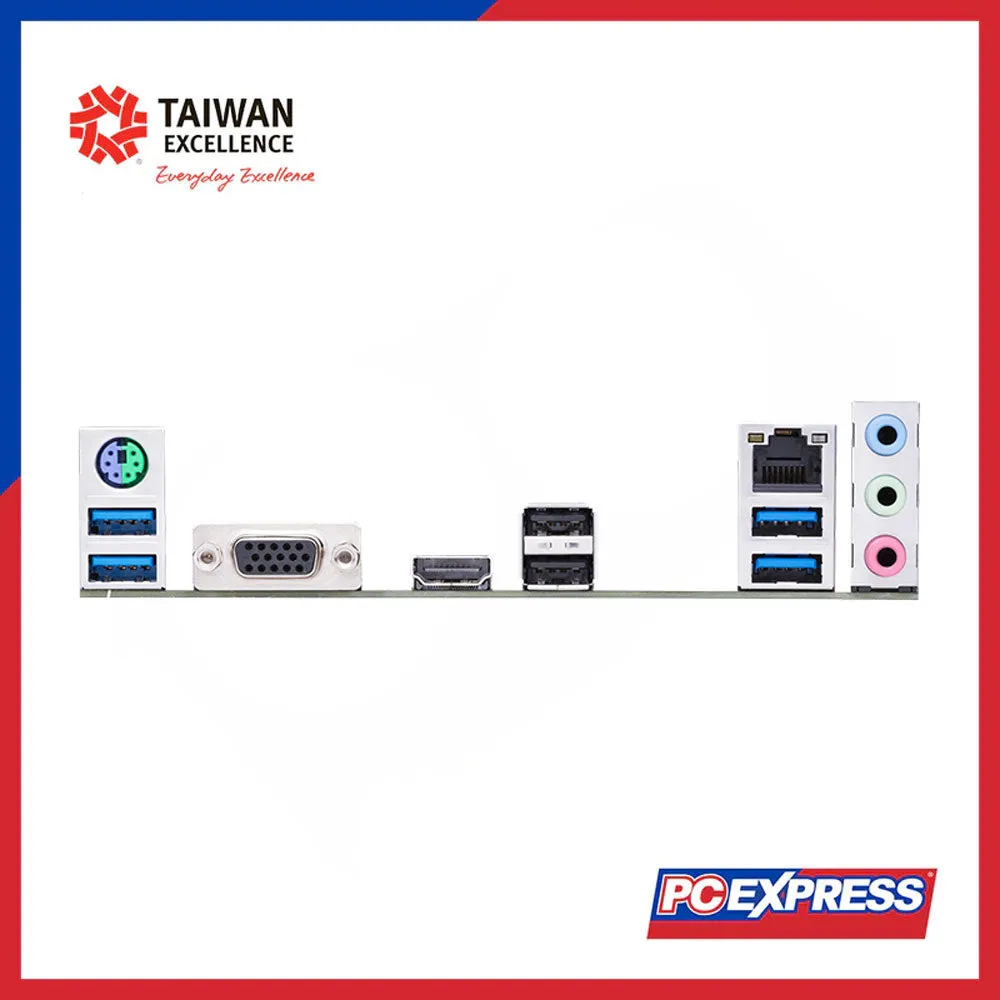

Back I/O Ports

1 x PS/2, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45), 4 x USB 3.2 Gen 1, 2 x USB 2.0, 3 x Audio jack

Internal I/O Ports

CPU Fan, Chassis Fan, USB 3.2 Gen 1 (additional), USB 2.0 (additional), M.2 Socket 3, SPI TPM header, SATA 6Gb/s, S/PDIF out, 24-pin EATX Power, 8-pin EATX 12V Power, Front panel audio, Clear CMOS jumper, System panel, COM port, Speaker

Accessories

User's manual, I/O Shield, 2 x SATA 6Gb/s cables, Supporting DVD, M.2 SSD screw package(s)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

mATX Form Factor, 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
