Model

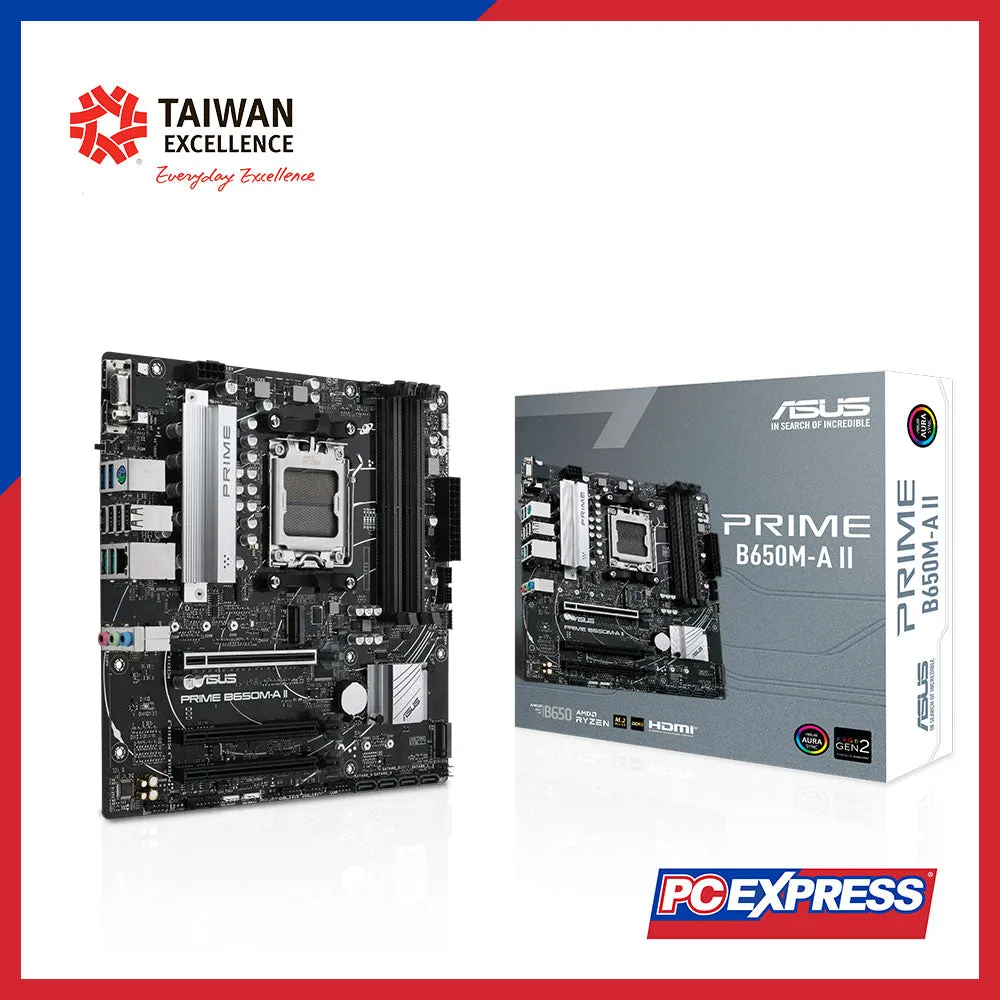

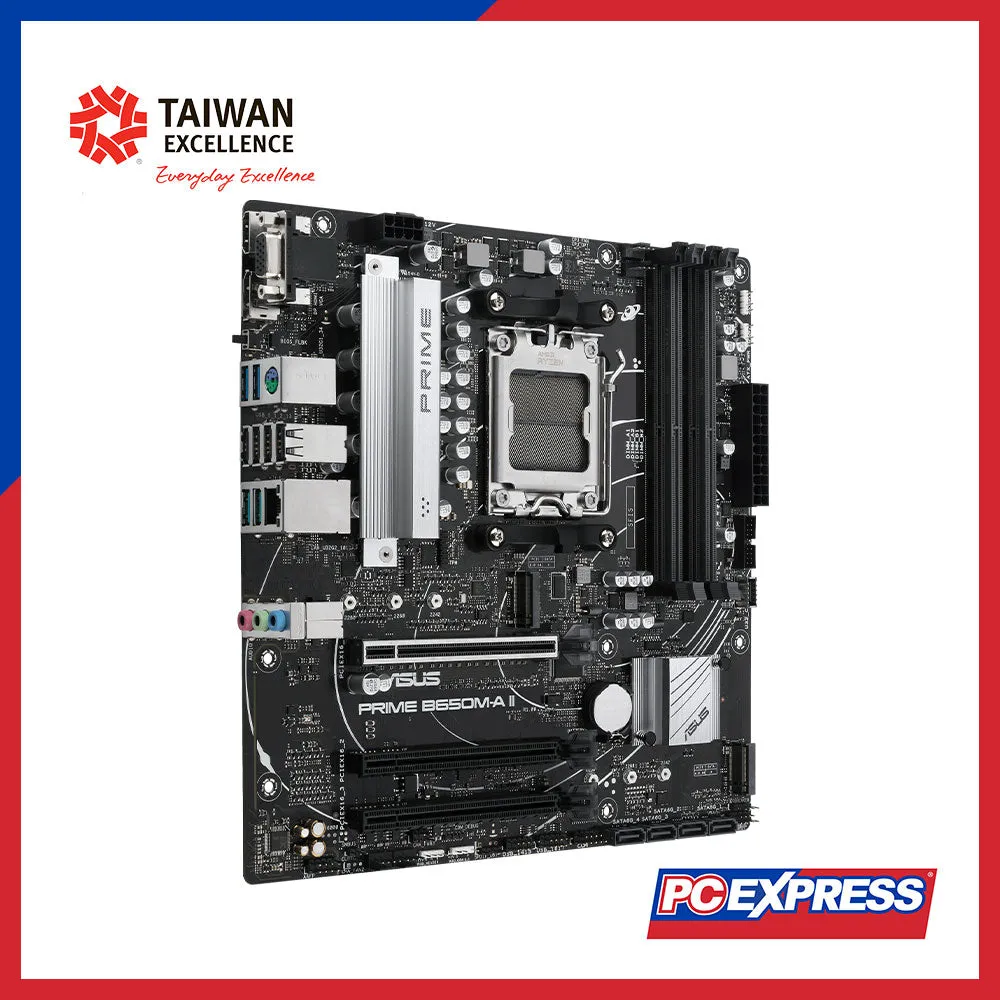

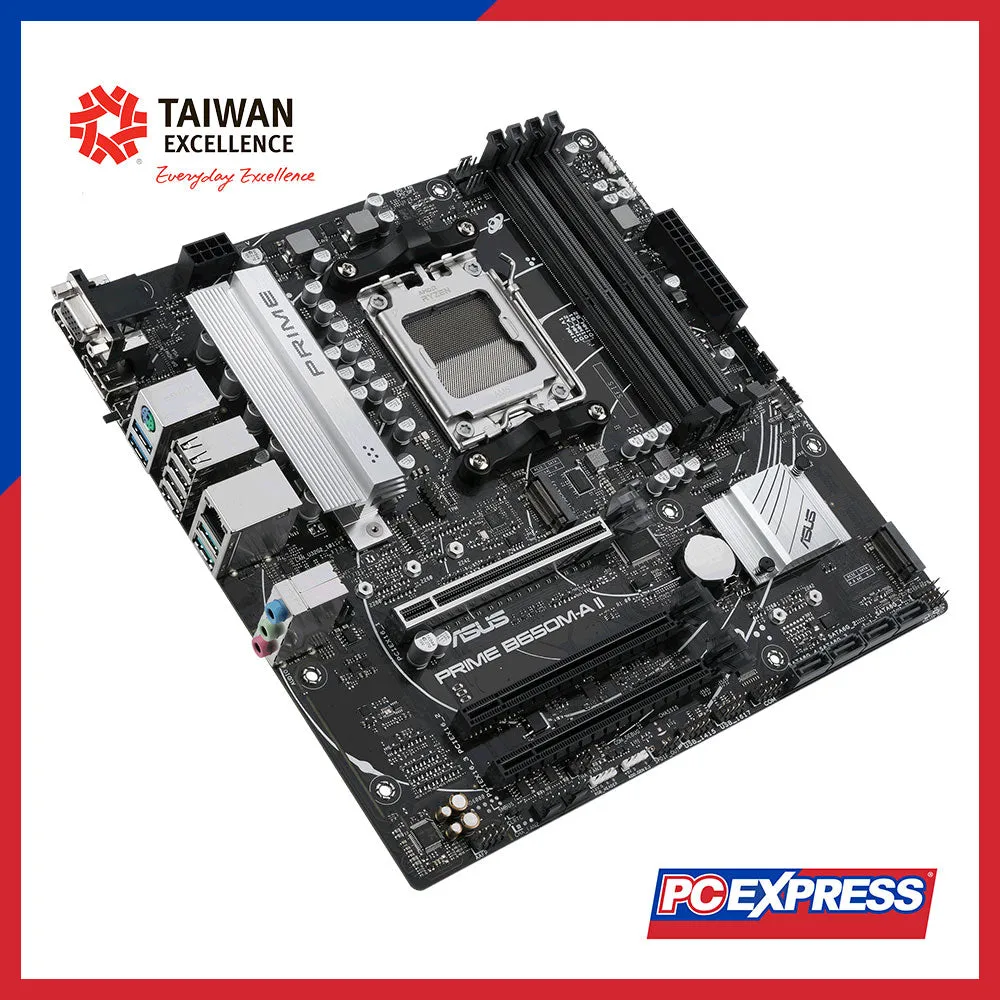

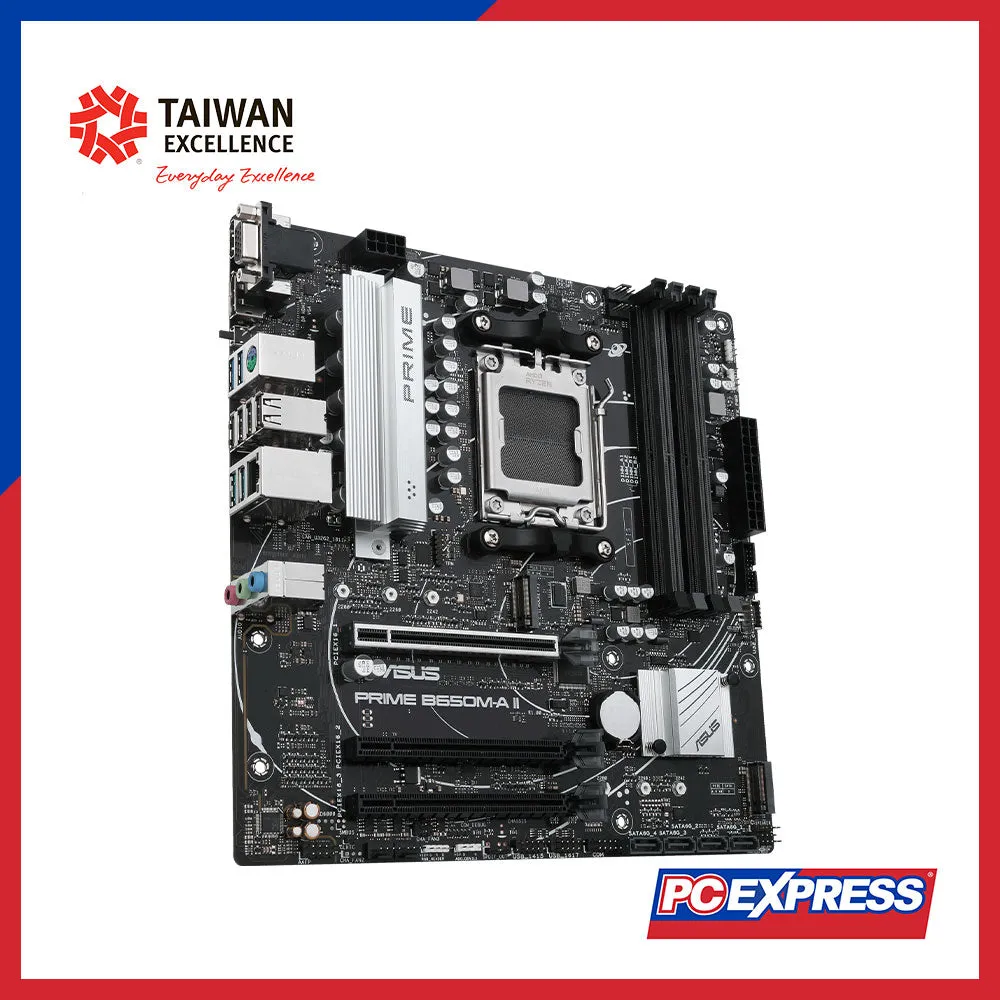

PRIME B650M-A II

CPU

AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors

Chipset

AMD B650 Chipset

Memory

4 x DIMM, Max. 192GB, DDR5 7600 (OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800

Graphics

1 x DisplayPort (8K@60Hz), 1 x VGA port, 1 x HDMI® port (4K@60Hz)

Expansion Slots

1 x PCIe 4.0 x16 slot (Ryzen™ 9000 & 7000: x16 mode, Ryzen™ 8000: x8/x4 mode) 2 x PCIe 4.0 x16 slots (x1 mode)

Storage

2 x M.2 slots, 4 x SATA 6Gb/s ports

Ethernet

1 x Realtek 2.5Gb Ethernet

USB (Rear)

2 x USB 3.2 Gen 2 (Type-A), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A)

USB (Front)

1 x USB 3.2 Gen 1 (Type-C®), 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports), 2 x USB 2.0 headers (support 4 additional USB 2.0 ports)

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC, Supports up to 24-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

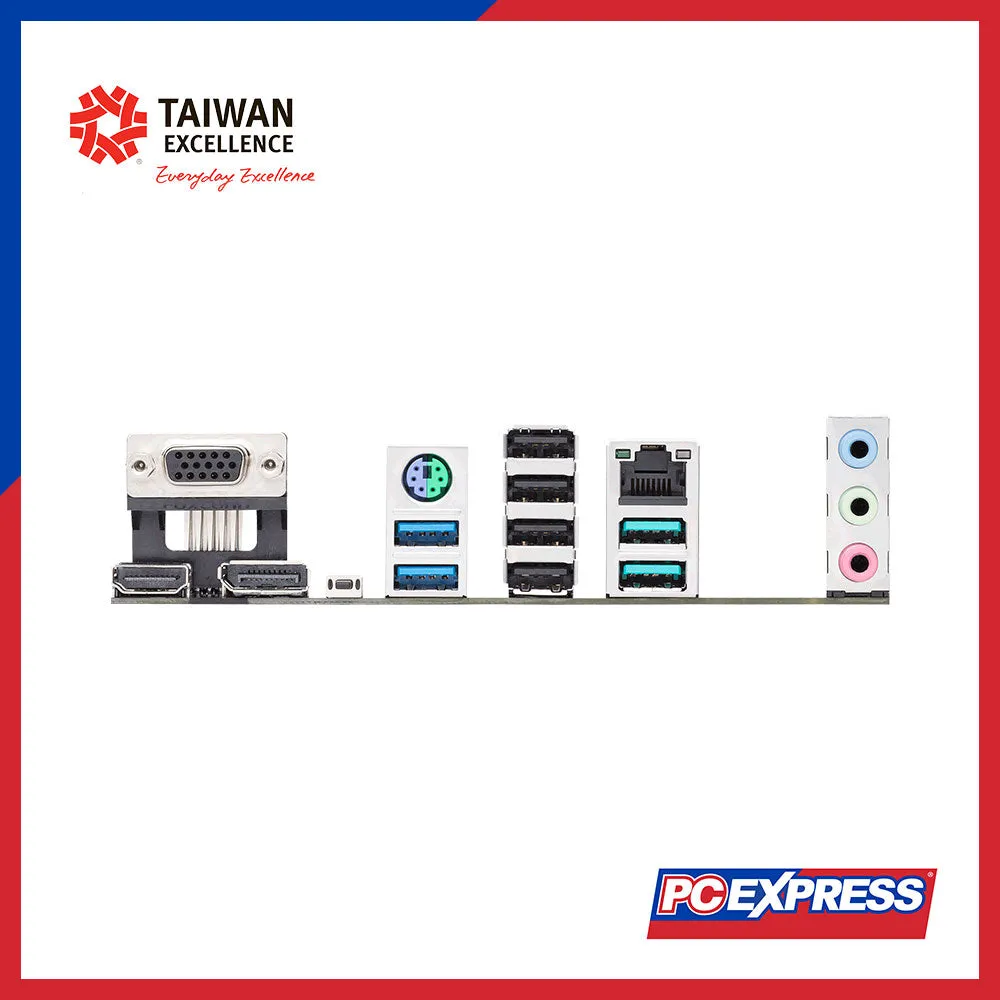

Back Panel I/O Ports

2 x USB 3.2 Gen 2 (Type-A), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x VGA port, 1 x HDMI® port, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

1 x 24-pin Main Power, 1 x 8-pin 12V Power, 2 x M.2 slots, 4 x SATA 6Gb/s ports, 1 x USB 3.2 Gen 1 (Type-C®), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync

Software Features

Armoury Crate, AI Suite 3, ASUS CPU-Z, Norton Anti-virus (Free Trial), WinRAR, UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x Screw Package for M.2 SSD, 1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

mATX (9.6 inch x 9.6 inch / 24.4 cm x 24.4 cm)
