- Intel LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
- Enhanced power solution: 5 1 1 DrMOS power stages, 8-layer PCB, for stable power delivery
- Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet, and USB 3.2 Gen 1 ports.
- 5X Protection III: Multiple hardware safeguards for all-around protection.

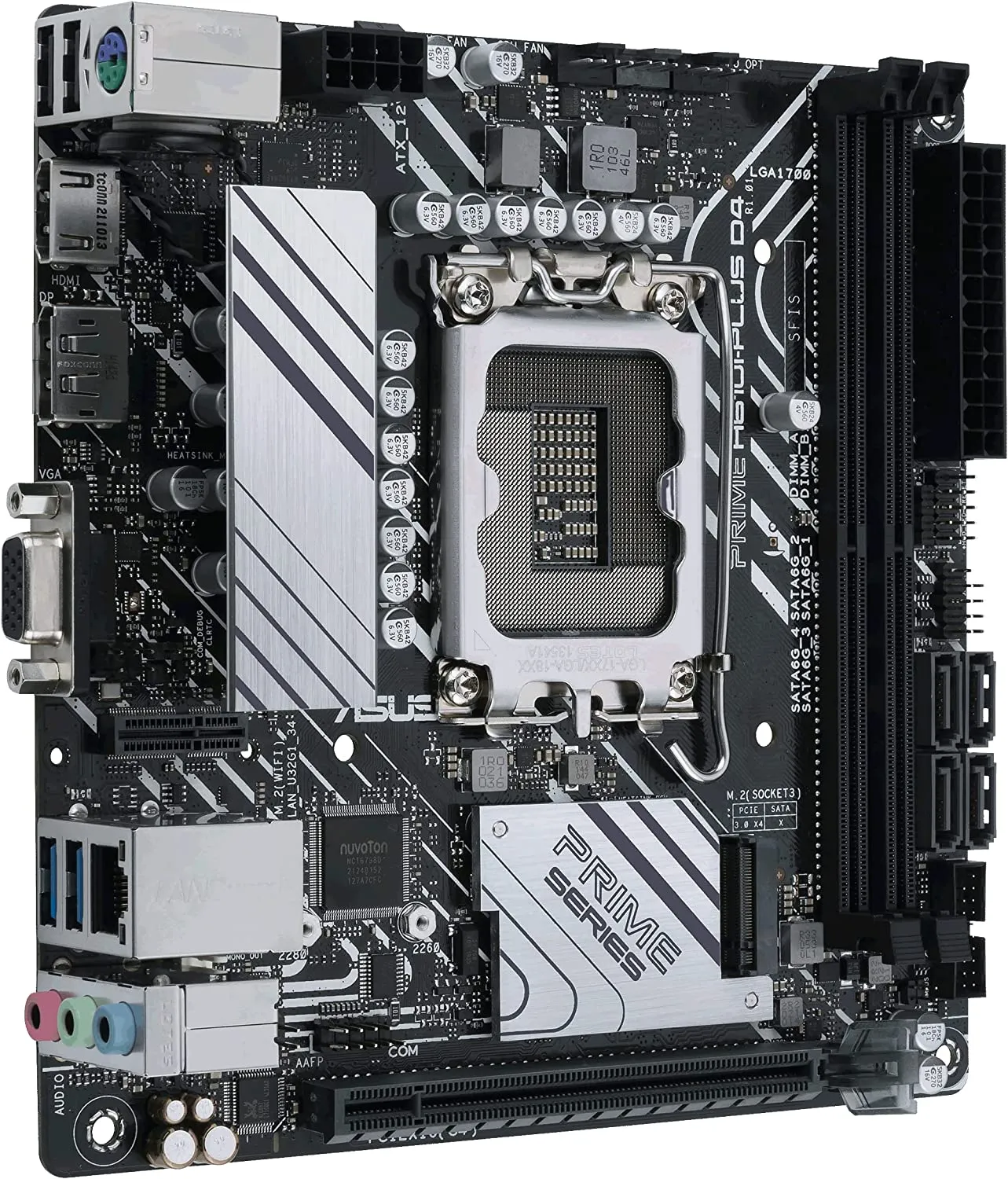

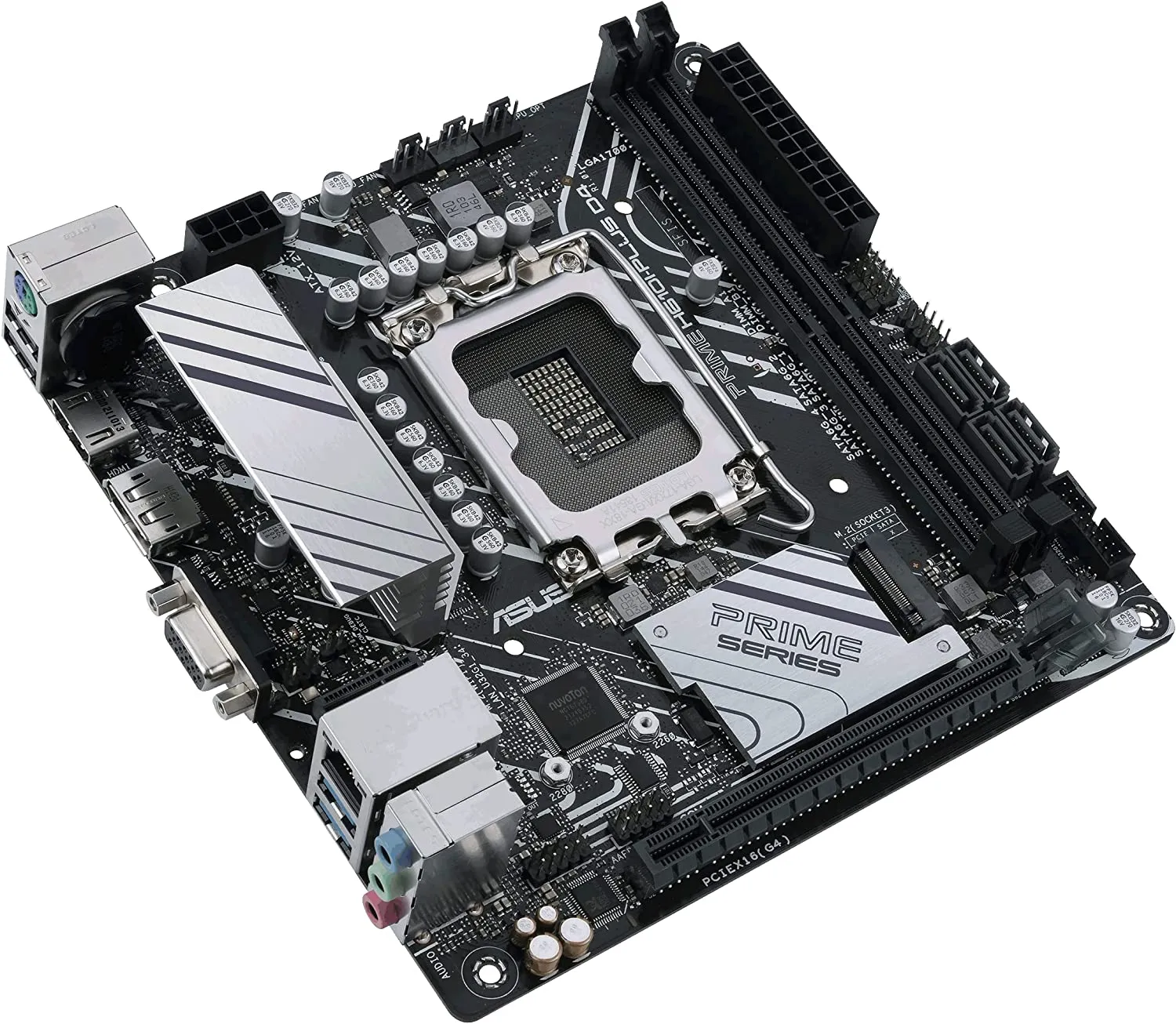

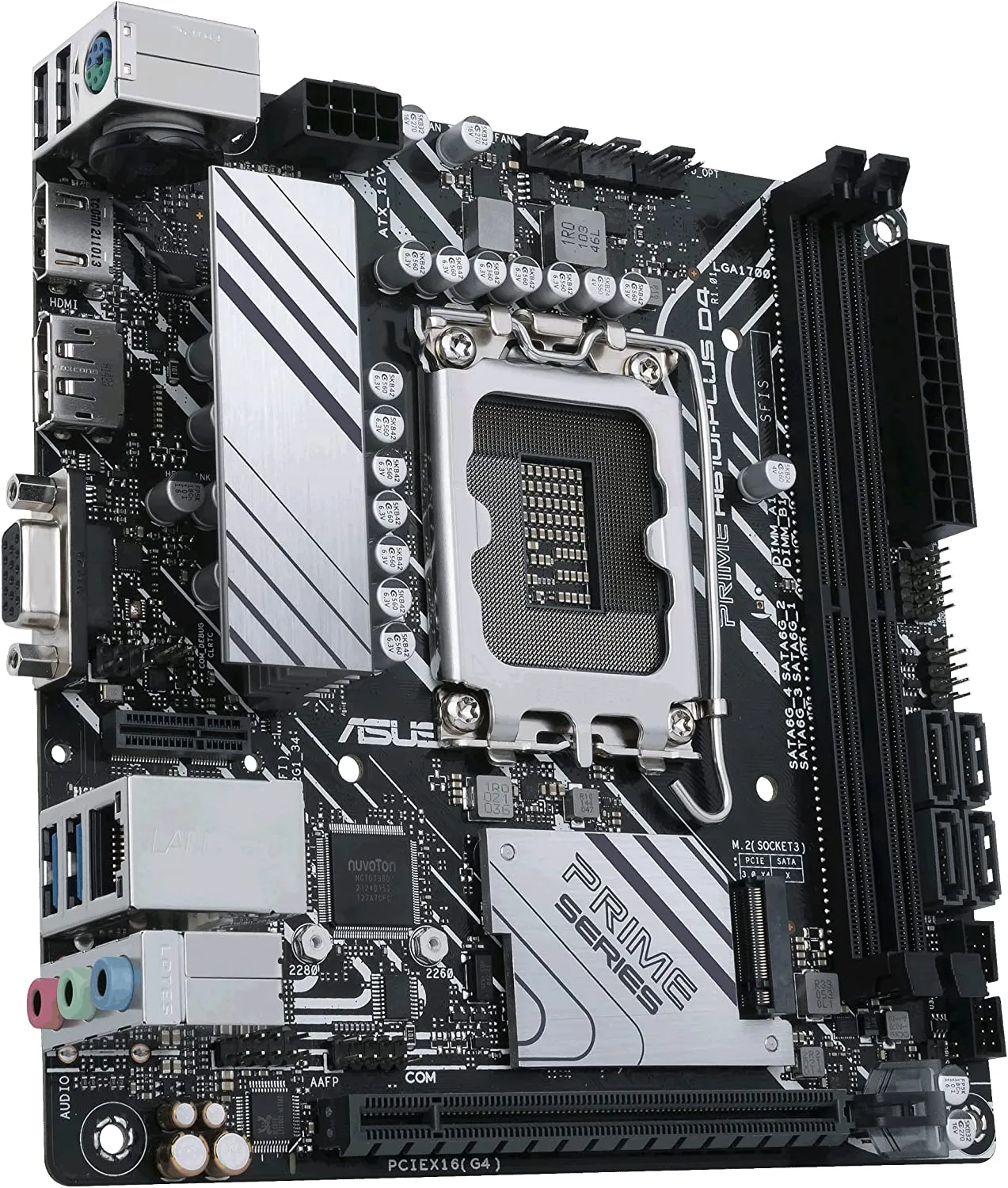

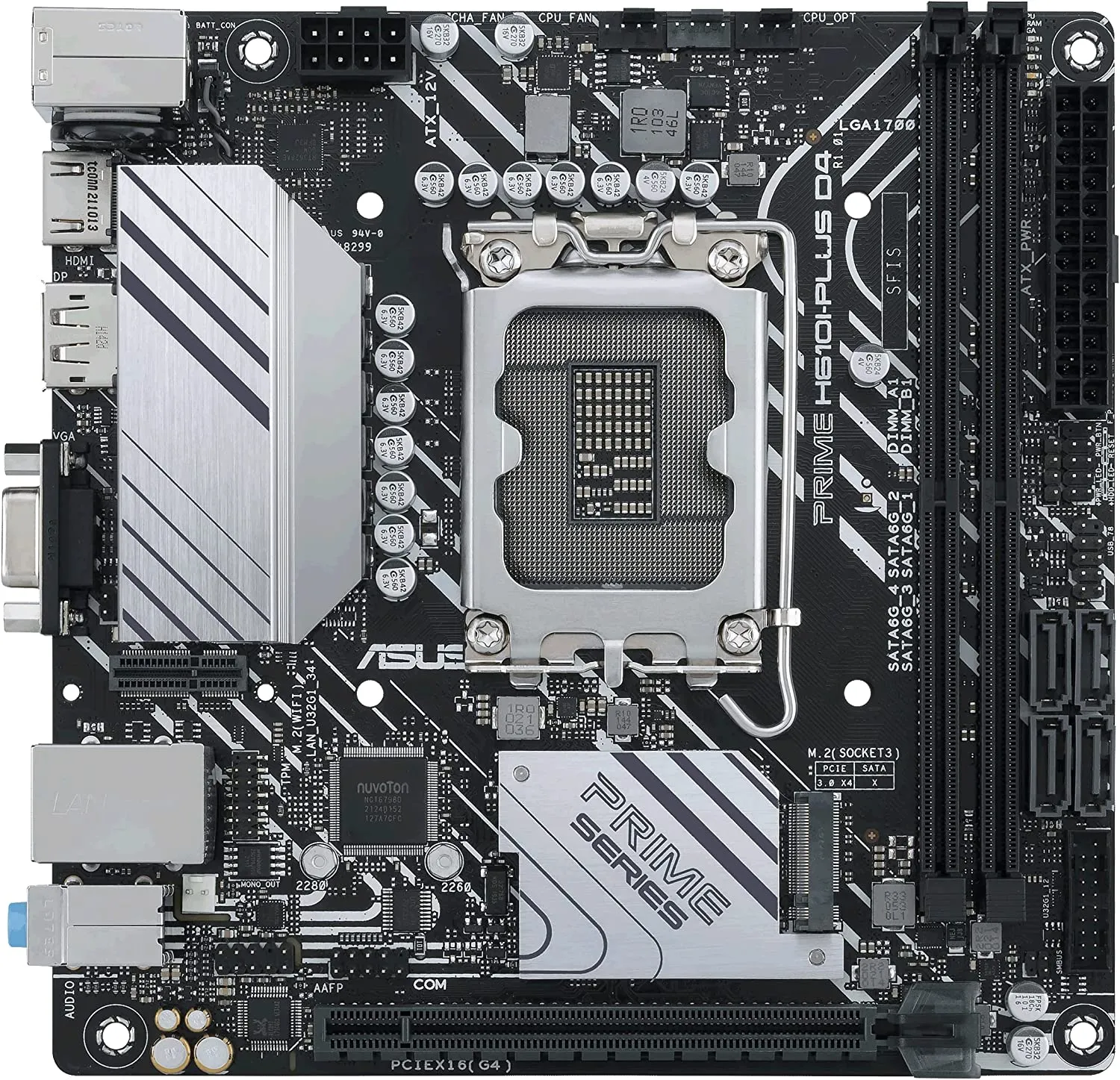

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, Prime H610 provides users and PC DIY builders with a range of performance tuning options via intuitive software and firmware features.
Specifications
Motherboard Type: Desktop
Form Factor: Mini ITX
Socket: Intel 1700
Chipset: Intel H610
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 x DIMM
RAM Speeds: 3200/3000/2933/2800/2666/2400/2133 MHz
Maximum Memory: 64GB
Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types
Graphics Ports
- 1 x VGA
- 1 x HDMI
- 1 x DisplayPort
Multi-GPU Support: N/A
PCI/PCI Express: 1 x PCIe 4.0 x16
Storage
4 x SATA III
1 x M.2 (2260/2280) - SATA & PCIe
LAN: GB LAN
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
4 x USB 2.0 (2 at back, 2 at mid-board)
Back Panel I/O Ports
- 2 x USB 3.2 Gen1 (Type-A)
- 2 x USB 2.0
- 1 x DisplayPort
- 1 x D-Sub
- 1 x HDMI
- 1 x V-M.2 (Key E)
- 1 x Realtek 1Gb Ethernet
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors
- 1 x 4-pin CPU Fan
- 1 x 4-pin CPU OPT Fan
- 1 x 4-pin Chassis Fan
- 1 x 24-pin Main
- 1 x 8-pin 12V
- 1 x M.2 (Key M)
- 4 x SATA 6Gb/s
- 1 x USB 3.2 Gen1
- 1 x USB 2.0
- 1 x Clear CMOS
- 1 x COM Port
- 1 x Front Audio 1 x Mono-out (with Amp IC)
- 1 x SMBUS
- 1 x Speaker
- 1 x SPI TPM (14-1pin)
- 1 x 10-1 pin System Panel
Accessories
- 2 x SATA 6Gb/s cables
- 1 x I/O Shield
- 1 x M.2 Screw Package
- 1 x Vertical M.2 Key E bracket set
- 1 x Support DVD
- 1 x User guide
