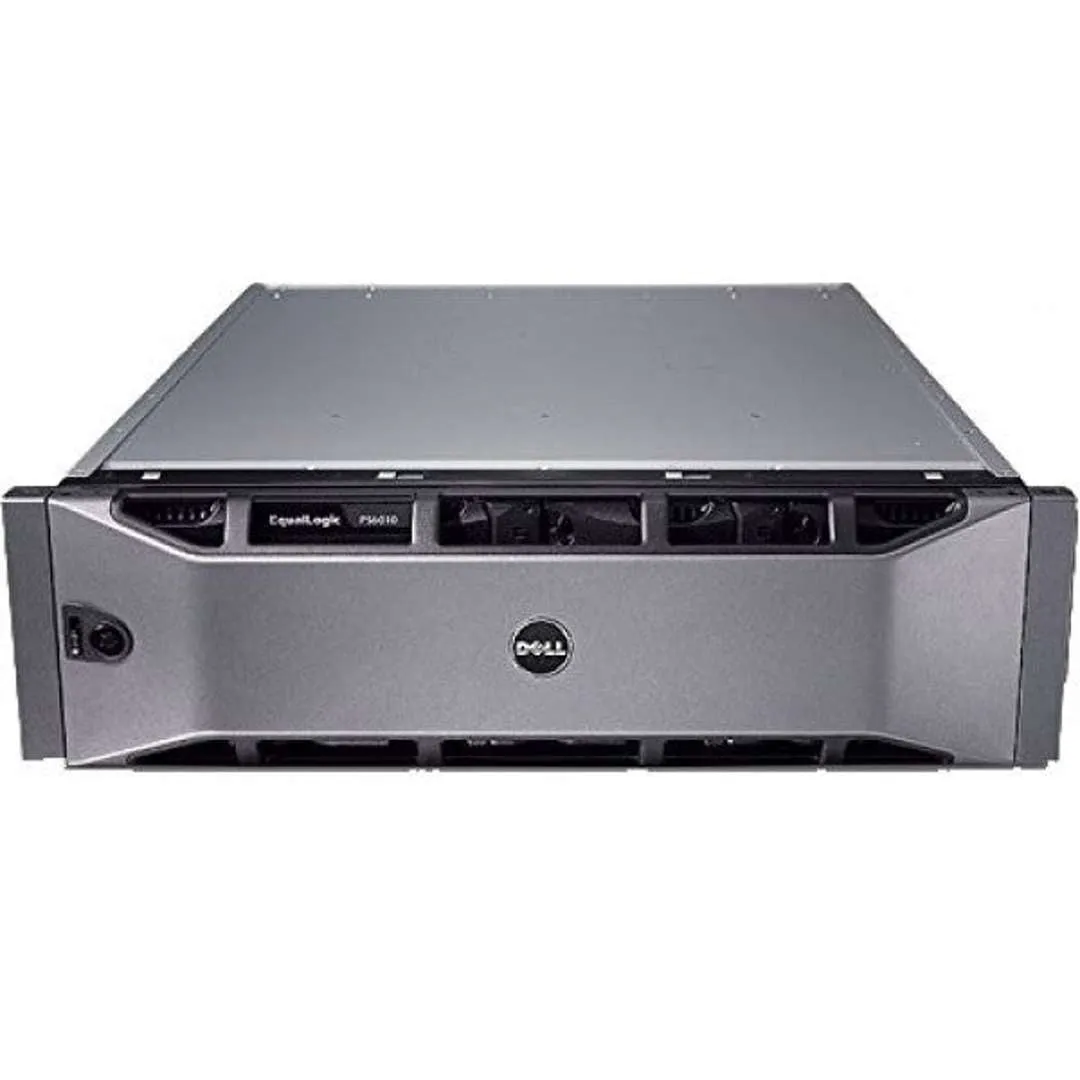

The Dell EqualLogic PS6000XVS is a virtualized iSCSI SAN that is designed to provide responsive, reliable support to end users while increasing efficiency and decreasing the cost of data management. The PS6000XVS supports the data availability of tired applications. The combination of low-latency SSD’s and high performance SAS drives within one array, gives the ability to deliver intuitive data responsiveness for tiered workloads.
The PS6000XVS offers optimized data response for applications through intelligent tiering of data, within the array, automatically placing it on the appropriate disk based on historical I/O and performance patterns. The PS6000XVS is designed to meet and exceed the rugged requirements of the data center. The PS6000XVS includes fault tolerance capabilities through fully redundant and hot-swappable components – dual-controllers, standard dual fan trays, dual power supplies and disk drives with hot spares. The PS6000XVS features dual 1GbE controllers with a total of 4GB battery-backed memory that provides up to 72 hours of data protection.
PS6000XVS ISCSI SAN TECHNICAL FEATURES
| PS6000 SERIES FEATURES | PS6000XVS ISCSI SAN TECHNICAL FEATURES |
|---|---|
| Product Configurations | Solid State Disk speed with Hard Drive capacity |
| Storage Controllers | Dual 1GbE iSCSI controllers with a total of 4GB battery-backed memory which provides up to 72 hours of data protection |
| Network Interfaces | 4x RJ45 1GbE copper per controller |
| Hard Disk Drives | 8x Hot-Pluggable 3.5" SSDs (Solid State Disks) 8x Hot-Pluggable 3.5" 15K SAS |
| Drive Capacities | 100GB 3.5" SSDs (Solid State Disks) 450GB 15K or 600GB 15K SAS 3.5" |
| System Capacities | Up to 5.6TB |
| Host Protocol | Any standards-compliant iSCSI initiator |
| Volumes | Up to 1,024 |
| Snapshots | 512 per volume/up to 10,000 total per group |
| Volume Connections per PS Series Group | Up to 1,024 per pool/4,096 per group |
| OS and Hypervisors Supported | Windows 2000 Server, Windows Server 2003, Windows Server 2008, including Hyper-V, Windows Vista, Windows Server 2008 R2 including Hyper-V, Windows XP, Red Hat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, IBM AIX, HP-UK, Mac OS X, VMware ESX Server 3/3.5/4/4.1/5, ESXi 3.5/4/4.1/5, Citrix XenServer, Novell NetWare |
| RAID Supported | Accelerated RAID 6 |
| TCP Network Support | IPv4, IPv6 Core Support |
| Expansion Option | Can be combined with other EqualLogic PS Series arrays in the same SAN group online. Up to 16 total members per group. |
| Reliability | Redundant, hot-swappable controllers; power supplies/cooling fans, and hot-swappable disks. Individual disk drive slot power control |
| Enclosure Monitoring System | Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives |
| Management Interfaces | EqualLogic SAN Headquarters multi-group performance and event monitoring tool. Serial Console. Ability to configure a separate management network. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Multi-administrator support. |
| Security | CHAP Authentication; Access control for iSCSI; Access control for management interfaces including RADIUS support |
| Notification Methods | SNMP traps, e-mail, syslog |
| Physical | Height: 3U (5.12") Width: 19.00" Depth: 21.70" Weight: 78.60 lbs |
| Power | Dual 440W DC Power Supplies. AC Voltage: 100-240 VAC. Frequency: 47-63 Hz |
| Environmental | Temperature Range: 5 to 35°C/ 41 to 95°F Storage temperature: -20 to 60°C / -22 to 140°F |
