Description

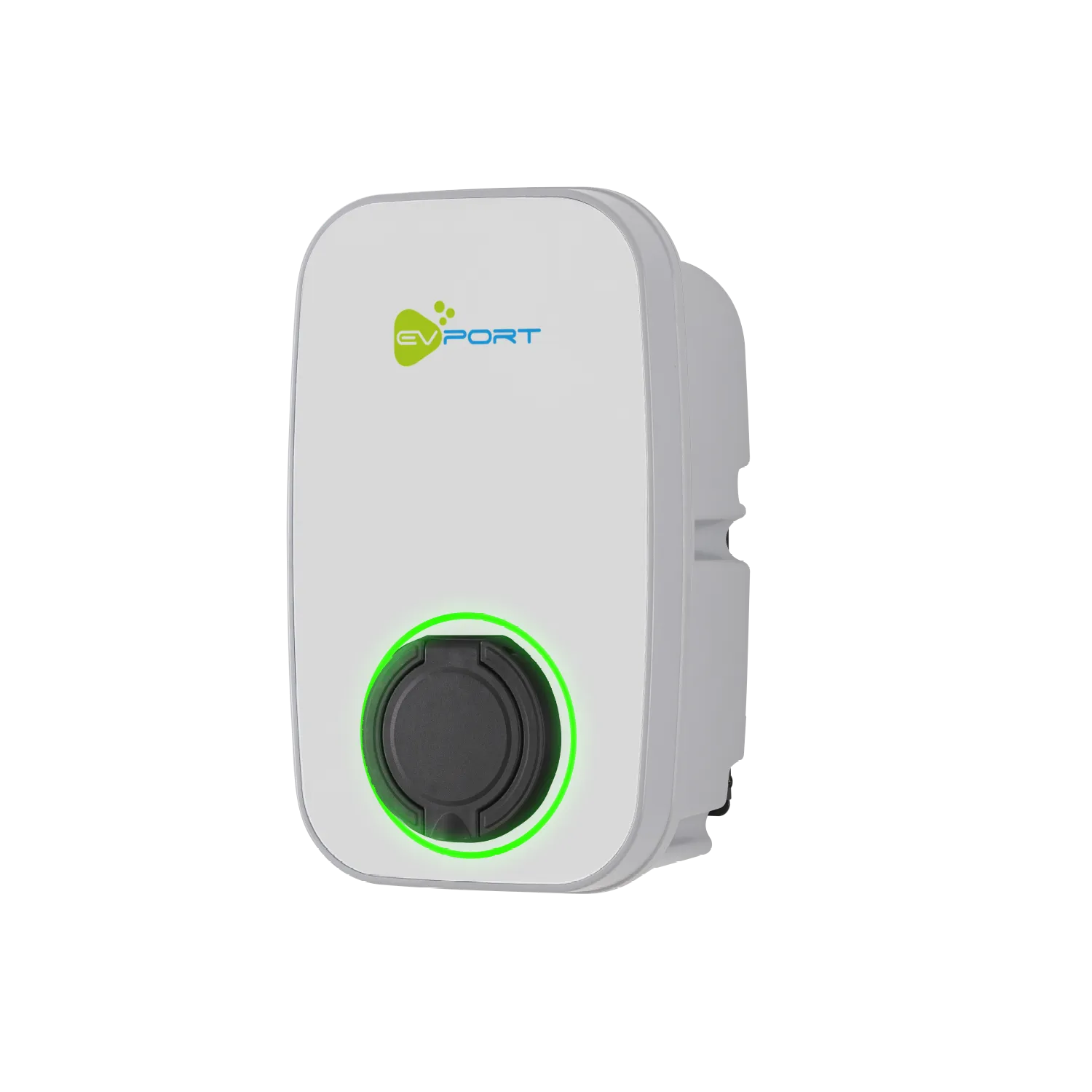

| ITEM | EVPORT Home Charger AC 7.4kW Smart Socket |
| POWER SUPPLY | 1P N PE |
| RATED & OUTPUT VOLTAGE | AC 220~240V, 50/60Hz |
| RATED CURRENT | 32A (6~32A adjustable) |
| RATED POWER | Max 7.4kW |
| CHARGER SOCKET | Type2 Socket |
| COLOR | White & Grey |
| FEATURES |
|
| CONNECTIVITY |
|
| SAFETY |
|
| INGRESS PROTECTION | IP54 |
| CERTIFICATION |
|
| CERTIFICATION STANDARD | EN 61851,EN 62196 |
| INSTALLATION | Wall mounted |
| WORKING TEMPERATURE | -25°C ~ 50°C |
| WORKING HUMIDITY | 3% ~ 95% |
| PRODUCT SIZE |
W 200mm x D 132mm x H 330mm |
| NET WEIGHT (Kg) | 2.4 |
| GROSS WEIGHT (Kg) | 3 |
Warranty : 36 months
ENJOY OUR HASSLE-FREE, CHARGER INSTALLATION COMBO, DESIGNED FOR YOUR PEACE OF MIND.
Standard Installation Terms & Conditions:
Only available to Auckland region installation
Basic wire is 10M, Extend wire cost 32 gst / meter
Fixed price install based on Existing distribution board has the capacity/spare ways to facilitate additional MCB RCD’s/RCBO’s required for the EV Charger (x2 ways required)
EVPORT EV Charger to be mounted within 10m of the existing distribution board
EV Charger and existing electricity distribution board on the same level
All new cabling will be reticulated via surface mounted conduit/trunking
Any additional materials outside of the above parameters will be charged at trade price
Any additional labour hour for installations outside of the above parameters will be charged
