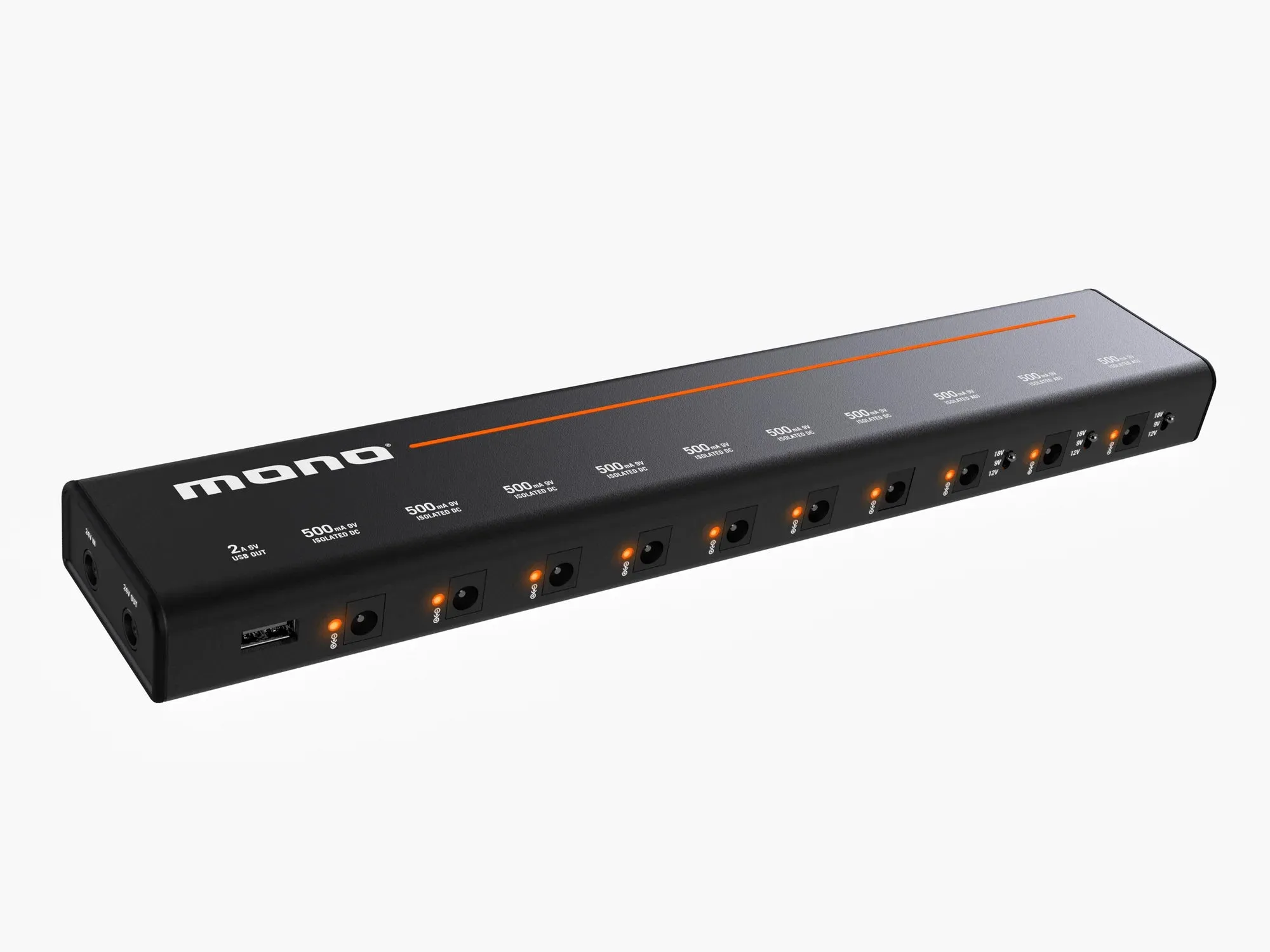

The Mono Power Supply, Large is designed to provide clean, isolated power to match any pedal rig and is universally compatible with any power source worldwide.
It offers 10 isolated low noise outputs with variable voltage outputs and a handy USB OUT, that can power a Mono Power Supply Small, or even charge a phone. It also features individual orange status LEDs at each output, soft-touch cable barrels and an ultra-slim 1" profile, designed to fit under the smallest of pedalboards.
Specs:

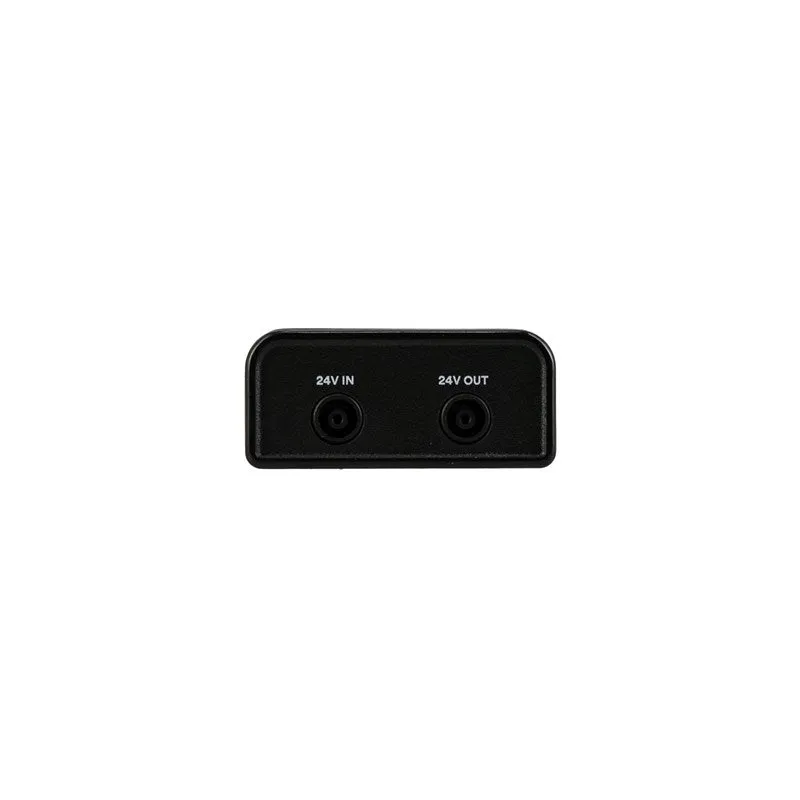

- Input: 24V DC @ 3A (5.5mm x 2.1mm plug)
- Outputs: 9V DC 500mA, center negative (x7) | 9/12/18V DC 500mA, center negative (x3) | 5V 2A, USB-A (x1) | 24V DC 2A (x1)
Dimensions:
- Size: 12.32" x 2.20" x 0.98" (313mm x 56mm x 25mm)
- Weight: 10.72 oz (304 g)
Included:
- 2.1mm x 5.5mm Power Cable Short (x5)
- 2.1mm x 5.5mm Power Cable Long (x5)
- IEC Cable
- EIAJ-05 Power Adapter Cable
- 24V Power Adapter
- Power Supply Mounting Brackets (x2)
- M3.5*13 Pan Head, Self-Tapping, Dovetail Screws (x6)
- Hook-and-Loop Tape
Video:
Product Specs
- Item Number: 27839
- Make:
- Model:
- Condition:
- Finish: Black
- Categories: ⇒ ⇒
- Made In: China
- MPN: PFX-PS-L-BLK-AU
- EAN: 8885015405673
