Name: Ops-Core FAST XP Tactical High Cut Helmet
SKU: 94687

The Ops-Core® FAST XP helmet is part of the FAST ballistic protection helmet family. Its innovative, lightweight design resists penetration from 9mm and frag threats at a weight of 2.81 lbs (Large). The FAST XP integrates into Ops-Core’s total head-borne system solutions, which include situational awareness, optics, and respiratory protection.

Features & Specifications:

Lightweight design capable of resisting 9mm and frag threats
High-cut, ballistic shell made of a hybrid composite of the most advanced carbon, unidirectional polyethylene, and woven aramid
High-cut shell geometry extends critical coverage over the rear occipital lobe without load carrier interference and optimizes weight distribution for increased stability, integration, balance, and improved comfort
Low Profile Skeleton Rail system offers a lightweight mounting system for the head-borne eco-system
Molded liner features a proprietary recessed channel, accommodating over-the-head communications headsets with no interference or user discomfort and the ability to doff and don the helmet without removing the headset

Suspension & Retention Options:

Vented Lux Liner with Low Profile OCC-Dial and Head-Loc Retention System

Testing Protocols & Design:

Performance Specification: In accordance with Gentex PS-1063 Specification, Modified and Abbreviated US Army ACH Helmet CO/PD 05-04:2007 Specification
NIJ Standards: NIJ 0106.01 with NIJ 0108.01 Level IIIA (9mm FMJ @ 1,400 ft/s) Threat Fragmentation Protection: In accordance with PS-1063 and MIL-STD-662F
9mm Protection: In accordance with PS-1063, Resistance to Penetration (RTP) and Backface Defamation
(BFD): 9mm FMJ, 24gr FMJ at 1,400 ft/s (426 m/s) at 0° obliquity with BFD < 1.0 inch (25.4 mm) (Right, Left, Crown, Front and Back)
Blunt Impact Protection: <150 G’s at 10 ft/s per ACH CO/PD 05-04:2007
Compression Testing: Top-Bottom = .020” (0.51 mm) Max @ 400 lbs. (181.44 kg), Side-Side = .125” (3.18 mm) Max @ 300 lbs. (136.08 kg) per MICH Type II FQ/PD 06-35C: 2013
Environmental Resistance: Temperature -Storage and Operating at Ambient, Cold -60° F (-51° C), and Hot 160° F (71° C), Temperature Shock, Flame Resistance, Altitude, Vibration, Seawater, Field Agent Resistance, Weatherometer per ACH CO/PD 05-04:2007

Specifications:

Performance Specification: In accordance with Gentex PS-1063 Specification, Modified and Abbreviated US Army ACH Helmet CO/PD 05-04:2007 Specification

NIJ Standards: NIJ 0106.01 with NIJ 0108.01 Level IIIA (9mm FMJ @ 1,400 ft/s) Threat

Fragmentation Protection: In accordance with PS-1063 and MIL-STD-662F

Blunt Impact Protection: <150 G’s at 10 ft/s per ACH CO/PD 05-04:2007

Compression Testing: Top-Bottom = .020” (0.51 mm) Max @ 400 lbs. (181.44 kg), SideSide = .125” (3.18 mm) Max @ 300 lbs. (136.08 kg) per MICH Type II FQ/PD 06-35C: 2013

Environmental Resistance: Temperature -Storage and Operating at Ambient, Cold -60° F (-51° C), and Hot 160° F (71° C), Temperature Shock, Flame Resistance, Altitude, Vibration, Seawater, Field Agent Resistance, Weatherometer per ACH CO/PD 05-04:2007

Shell Construction: Two-Stage Non-Slit

Shell Thickness: 0.290” (7.37mm)

Shell Geometry (Curvature): FAST

Cut Style (Side Protection): High Cut

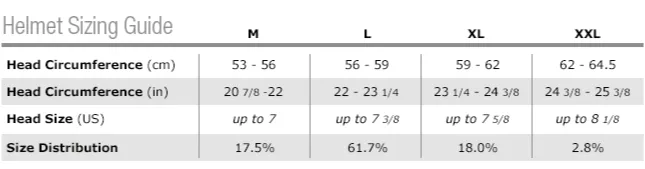

Available Sizes: Medium (M), Large (L), X-Large (XL), XX-Large (XXL)
