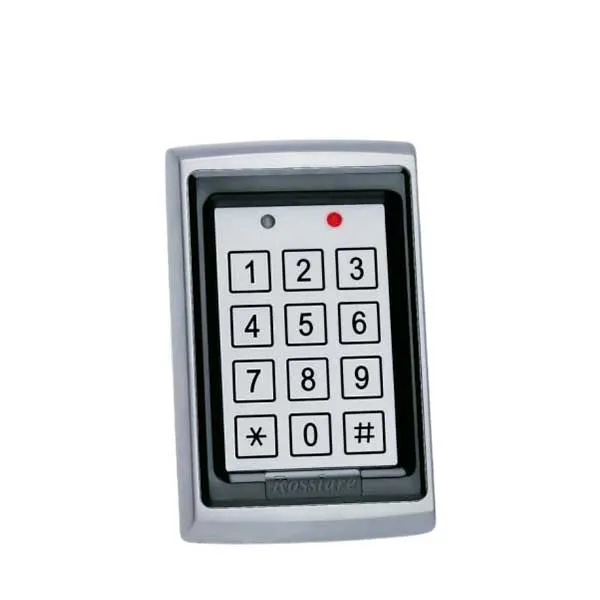

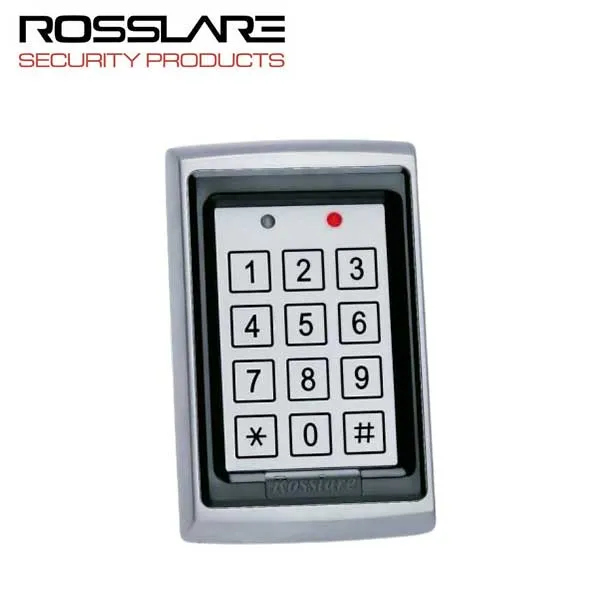

The AYC-Q65 offers programmable Proximity & PIN transmission formats, LED control, and tamper detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its extremely strong metallic housing and waterproof enclosure for maximum durability.
Features:
- Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
- Smooth, attractive design, with all-weather indoor and outdoor operation
- Large, highly-visible piezoelectric keypad
- 2 tri-colored LEDs and an integral sounder for programming and operation
- User-friendly menu, based on LED and sounder indicators
- Back and cover optical tamper detection and output.
- Multi-format reader (Wiegand 26-Bit/Clock & Data/Card & PIN)
- Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays
| Operating Voltage Range |
5–16 VDC |
| Input Current | 90 mA |
| Input Current Max | 130 mA |
| Max Read Range | 45 mm |
| Keypad | 3x4 keypad for local programming and 4- to 8-digit PIN codes entry |
| LED Control |
Dry Contact N.O. |
| Read Card Format | Selectable Wiegand 26-Bit, Clock & Data, Card & PIN |
| Operating Temperature | -35°C to 66°C (-31°F to 151°F) |
| Dimensions | 120 x 76 x 21 mm (4.7 x 3 x 0.83 in.) |
